Subaru & Toyota - Downshift Blip Module
Plug-n-Play - No more heel-to-toe - Consistent downshift, rev matched - USB programmable
Subaru WRX/STI Install
BRZ - 86 - FRS Install
2021+ BRZ - GR86 - GT86 Install
2016-2023 Tacoma Install
For Road Race - Street/Strip - DBW (Drive-by-wire) cars with Manual Transmission
Throttle Control Description
Simple installation with OEM throttle pedal, brake and clutch switch circuits.
Upon detection of a downshift event (Brake and Clutch pressed) the throttle is commanded to a target % for a set duration (ms) to rev match the lower gear.
- Target Throttle Blip %
- Delay after trigger for blip (ms)
- Duration of blip (ms)
- Clutch Pos %
- Min. time between blips (ms)

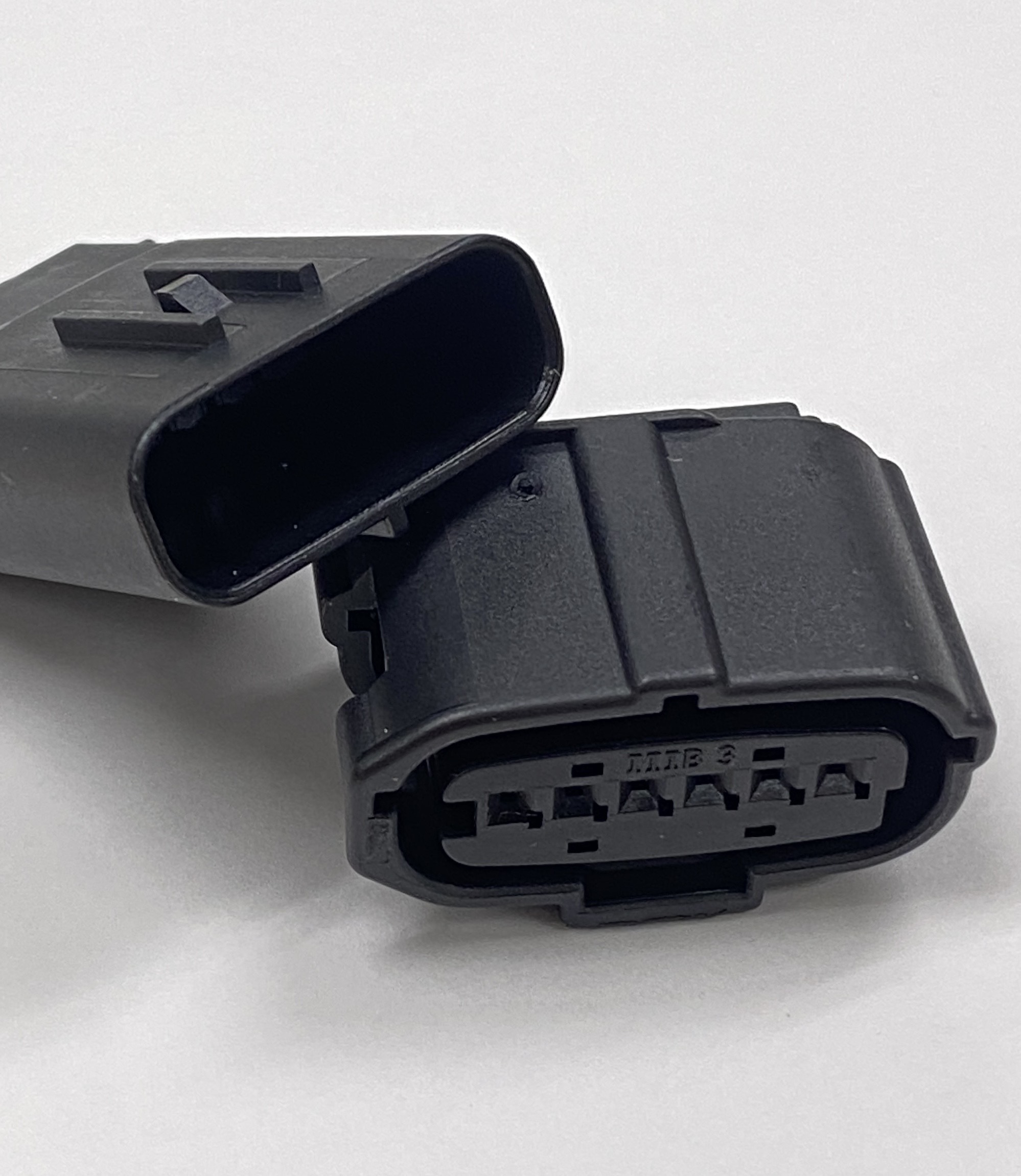

- OEM Throttle pedal connectors: Plug-n-Play
- Red Power LED & Blue BLIP ACTIVE LED on front panel
- Passive design, vehicle operates normally when power to module is switched off.
- USB programmable (set it and forget it) with Android App or Windows PC program
- Every unit end-of-line tested
- Made in the USA
Technical Notes
